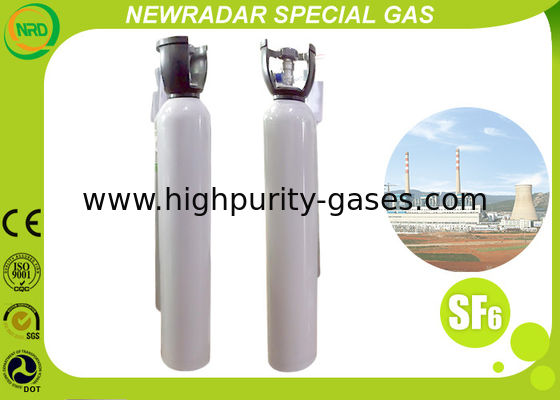

Ultra High Purity Gases Sulfur Hexafluoride Sf6 Low Thermal Conductivity

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO/DOT/GB
Model Number: N/A
Minimum Order Quantity: 1000 kilogram
Price: negotiation
Packaging Details: 10kg, 40kg or 50kg packed in the qualified gas cylinder or packed according to the demands.
Delivery Time: 15-25 working days after received your payment
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 3,00 ton per month
Detail Information
Professional Standards: TWA 6000 Mg/m³; STEL 7500 Mg/m. Definition: ChEBI: A Sulfur Coordination Entity Consisting Of Six Fluorine Atoms Attached To A Central Sulfur Atom
MW:: 146.06 MF:: F6S
Mol File: 2551-62-4.mol Application: Circuit Breaker,high-voltage Transmission Line, CIS, Large Cable Coil, Mutual Inductor, Lightning Arrester.
RIDADR: UN 1080 2.2 Stability:: Stable. Non-flammable. Explodes On Contact With Disilane. Reacts With Sodium.
High Light:

electric gas

,

purity plus specialty gases


Product Description

High Purity Sulfur Hexafluoride For Sale Sf6 Use In The Electric Power Industry



Description:



SF6 is the ideal high voltage insulator.

This SF6 Gas is widely used as arc quenching gas due to its low thermal conductivity and least dissociation temperature. This gas is processed by utilizing the finest quality chemical compounds under controlled temperature and pressure conditions. The offered gas finds its application in electrical industry owing to its excellent resistance against electricity.This SF6 can be purchased from us at reasonable market rates.

Ultra High Purity Gases Sulfur Hexafluoride Sf6 Low Thermal Conductivity 0

Specifications:



1. Physical properties



Commodity Sulfur hexafluoride
Molecular Formula SF6
CAS No. 2551-62-4
UN No. 1080
Hazardous Class 2.2
Standard Package Container 40L/150bar cylinder
Cylinder Dimension Φ219x1500mm
Filling Weight 50kg























2. Typical technical data (COA)

Grade Classification GB/T12022-2006 High Purity
4.5N
(SF6) % ≥99.9 ≥99.995
Air % ≤0.04 ≤0.003
(CF4) % ≤0.04 ≤0.003
Water ppm ≤5 ≤1
Acidity ppm ≤0.2 ≤0.1
Hydrolyze fluoride(As HF) ppm ≤1 ≤0.2
Mineral oil ppm ≤4 ≤1
Toxicity Non-tox. Non



























Applications:

 Electrical Industries Circuit Breaker

  leak detection and as a gaseous dielectric for transformers, condensers
and circuit breakers,high-voltage transmission line, CIS, large cable coil, mutual    inductor, lightning arrester.



 As an inert gas



 For the casting of magnesium.as an etchant in the semiconductor
industry



 As an inert filling

 Insulated glazing windows.



 Dielectric medium

SF6 is used in the electrical industry as a gaseous dielectric medium for high-voltage circuit breakers, switchgear, and other electrical equipment, often replacing oil filled circuit breakers (OCBs) that can contain harmful PCBs.



 Medical use



 SF6 is used to provide a tamponade or plug of a retinal hole in retinal detachment repair operations in the form of a gas bubble.SF6 is used as a contrast agent for ultrasound imaging. Sulfur hexafluoride microbubbles are administered in solution through injection into a peripheral vein.



 Tracer compound

 Sulfur hexafluoride was the tracer gas used in the first roadway air dispersion model calibration; this research program was sponsored by the U.S. Environmental Protection Agency and conducted in Sunnyvale, California on U.S. Highway 101.Sulfur hexafluoride is also routinely used as a tracer gas in laboratory fume hood containment testing.
