Odorless Organic Gases , Ch4 Methane Gas Packaged In Dot 44L Or 47L Cylinders

Certification
Good quality Rare Gases for sales
Good quality Rare Gases for sales
Good product, Great communication, Sara was great and helpfull!

—— Mark from India

Very helpful advices and let me source good raw material at one time~

—— James from Germany

Efficient communication, safe receipt the cargo

—— Nico from Russia

Great

—— Dannel from America

I'm Online Chat Now

Odorless Organic Gases , Ch4 Methane Gas Packaged In Dot 44L Or 47L Cylinders

China Odorless Organic Gases , Ch4 Methane Gas Packaged In Dot 44L Or 47L Cylinders supplier

Large Image :  Odorless Organic Gases , Ch4 Methane Gas Packaged In Dot 44L Or 47L Cylinders

Product Details:

Place of Origin: China
Brand Name: OEM / NRD
Certification: GB/ISO/DOT
Model Number: N/A

Payment & Shipping Terms:

Minimum Order Quantity: 5 Cylinders
Price: negotiation
Packaging Details: 40L,50L or customized cylinder
Delivery Time: 15 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 cylinders per Month
Contact Now
Detailed Product Description
Product Name: Methane CAS No.: 74-82-8
EINECS No.:: 200-812-7 Density: 0.656 G/L
Grade Standard: Electron Grade, Industrial Grade, Medicine Grade Odor: Odorless
GHS Signal Word: DANGER Chemical Formula: CH4



Odorless Organic Gases , Ch4 Methane Gas Packaged In Dot 44L Or 47L Cylinders



Description:

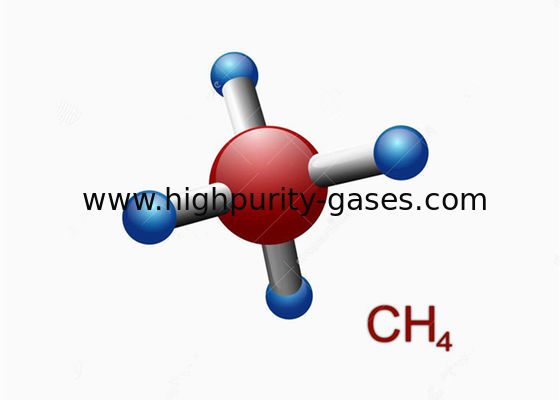

Methane is a tetrahedral molecule with four equivalent C–H bonds. Its electronic structure is described by four bonding molecular orbitals (MOs) resulting from the overlap of the valence orbitals on C and H. The lowest energy MO is the result of the overlap of the 2s orbital on carbon with the in-phase combination of the 1s orbitals on the four hydrogen atoms. Above this energy level is a triply degenerate set of MOs that involve overlap of the 2p orbitals on carbon with various linear combinations of the 1s orbitals on hydrogen. The resulting "three-over-one" bonding scheme is consistent with photoelectron spectroscopic measurements.



Specifications:



1. Physical properties



Product Name Methane
Molecular Formula CH4
UN No. UN 1971
CAS No. 74-82-8
EINECS No. 200-812-7



2. Typical technical data (COA)



Grade 3N 4N 5N
Purity 99.9% 99.99% 99.999%
N2 ≤250 ≤35 ≤4
O2+Ar ≤50 ≤10 ≤1
C2H6 ≤600 ≤25 ≤2
H2 ≤50 ≤10 ≤0.5
H2O ≤50 ≤15 ≤2



Specification

Certified

Concentration

Unit Analytical Method
Methane (CH4) ≥99.999 ≥99.999 % GC/PDID
Nitrogen (N2) ≤4.0 ≤4.0 ppmv GC/PDID
Oxygen (O2) ≤1.0 ≤1.0 ppmv GC/PDID
C2H6 ≤2.0 ≤2.0 ppmv GC/PDID
Carbon Dioxide(CO2) ≤3.0 ≤1.0 ppmv GC/PDID
Carbon Monoxide(CO) ≤1.0 ≤0.3 ppmv GC/PDID
C2H4 ≤1.0 ≤0.3 ppmv GC
C3H8 ≤2.0 ≤0.3 ppmv GC
C3H6 ≤2.0 ≤0.3 ppmv GC
C6H14 ≤1.0 ≤0.5 ppmv GC
Moisture(H2O) ≤1.0 ≤1.0 ppmv Moisture Analyzer

































3. Package

Product Methane CH4
Package Size 40Ltr Cylinder 50Ltr Cylinder
Filling Net Weight/Cyl 135Bar 165Bar
QTY Loaded in 20’Container 240 Cyls 200 Cyls
Cylinder Tare Weight 50Kgs 55Kgs
Valve QF-30A / CGA350





Application:



  1. In the steel industry, with open hearth furnaces, in the presence of fuel oil, and in reheating furnaces
  2. For semi-products prior to rolling or forging, oxycutting of metal, for heat treatment of nonferrous metals, and supply to infrared heating elements used for surface treatment
  3. In thermal power plants
  4. In glass making, annealing kilns for pharmaceutical ampoules, ceramic kilns
  5. In the textile industry
  6. In the chemical industry, petrochemical furnaces, heating of tanks containing resins for paints, vulcanisation of plastics
  7. In food and farm industries, coffee roasting ovens, malt drying in breweries, dehydration of plant fodder, powdered milk production
  8. In cement plants
  9. In paper mills



SHIPPING DATA:



SHIPPING DATA
Synonyms Methane
CAS Register Number 74-82-8
DOT Classification flammable gas
DOT Label flame pictogram
UN Number 1971
Hazards High Pressure and suffocation
Flammability Range (in air) Nonflammable gas
