Place of Origin: | China |
---|---|
Brand Name: | Newradar Gas |
Certification: | GB/ISO/DOT |
Model Number: | N/A |
Minimum Order Quantity: | 5 Cylinders |
Price: | negotiation |
Packaging Details: | 40L,50L or customized cylinder |
Delivery Time: | 15 working days after received your payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100000 cylinders per Month |
Product Name: | Methane | Other Names: | Marsh Gas, Natural Gas |
---|---|---|---|
Appearance: | Colorless | UN Number: | 1971 |
Melting Point: | −182.5 °C | Boiling Point: | −161.49 °C |
GHS Signal Word: | DANGER | Chemical Formula: | CH4 |
High Light: | volatile organic compounds,voc gas |

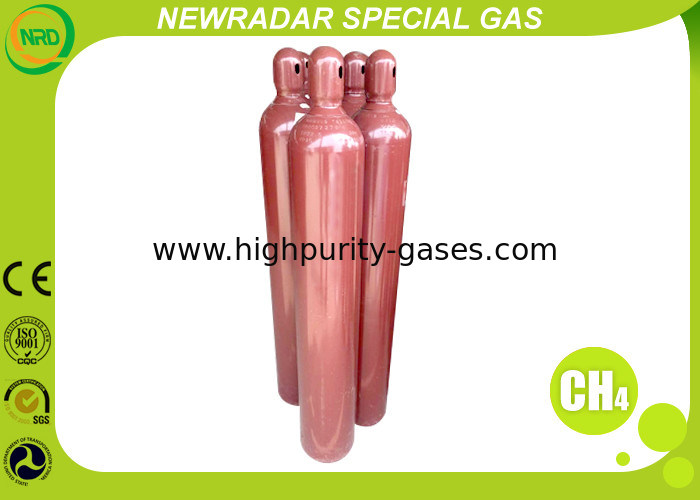

99.99% Methane Natural Gas apply to Steel Industry And Presence Of Fuel Oil
Description:
At room temperature and standard pressure, methane is a colorless, odorless gas. The familiar smell of natural gas as used in homes is achieved by the addition of an odorant, usually blends containing tert-butylthiol, as a safety measure. Methane has a boiling point of −161 °C (−257.8 °F) at a pressure of one atmosphere. As a gas it is flammable over a range of concentrations (5.4–17%) in air at standard pressure.
Solid methane exists in several modifications. Presently nine are known. Cooling methane at normal pressure results in the formation of methane I. This substance crystallizes in the cubic system (space group Fm3m). The positions of the hydrogen atoms are not fixed in methane I, i.e. methane molecules may rotate freely. Therefore, it is a plastic crystal.
Specifications:
1. Physical properties
Product Name | Methane |
Molecular Formula | CH4 |
UN No. | UN 1971 |
CAS No. | 74-82-8 |
EINECS No. | 200-812-7 |
2. Typical technical data (COA)
Grade | 3N | 4N | 5N |
Purity | 99.9% | 99.99% | 99.999% |
N2 | ≤250 | ≤35 | ≤4 |
O2+Ar | ≤50 | ≤10 | ≤1 |
C2H6 | ≤600 | ≤25 | ≤2 |
H2 | ≤50 | ≤10 | ≤0.5 |
H2O | ≤50 | ≤15 | ≤2 |
Specification |
Certified Concentration |
Unit | Analytical Method | |
Methane (CH4) | ≥99.999 | ≥99.999 | % | GC/PDID |
Nitrogen (N2) | ≤4.0 | ≤4.0 | ppmv | GC/PDID |
Oxygen (O2) | ≤1.0 | ≤1.0 | ppmv | GC/PDID |
C2H6 | ≤2.0 | ≤2.0 | ppmv | GC/PDID |
Carbon Dioxide(CO2) | ≤3.0 | ≤1.0 | ppmv | GC/PDID |
Carbon Monoxide(CO) | ≤1.0 | ≤0.3 | ppmv | GC/PDID |
C2H4 | ≤1.0 | ≤0.3 | ppmv | GC |
C3H8 | ≤2.0 | ≤0.3 | ppmv | GC |
C3H6 | ≤2.0 | ≤0.3 | ppmv | GC |
C6H14 | ≤1.0 | ≤0.5 | ppmv | GC |
Moisture(H2O) | ≤1.0 | ≤1.0 | ppmv | Moisture Analyzer |
3. Package
Product | Methane CH4 | |
Package Size | 40Ltr Cylinder | 50Ltr Cylinder |
Filling Net Weight/Cyl | 135Bar | 165Bar |
QTY Loaded in 20’Container | 240 Cyls | 200 Cyls |
Cylinder Tare Weight | 50Kgs | 55Kgs |
Valve | QF-30A / CGA350 |
Application:
SHIPPING DATA:
SHIPPING DATA | |
Synonyms | Methane |
CAS Register Number | 74-82-8 |
DOT Classification | flammable gas |
DOT Label | flame pictogram |
UN Number | 1971 |
Hazards | High Pressure and suffocation |
Flammability Range (in air) | Nonflammable gas |
