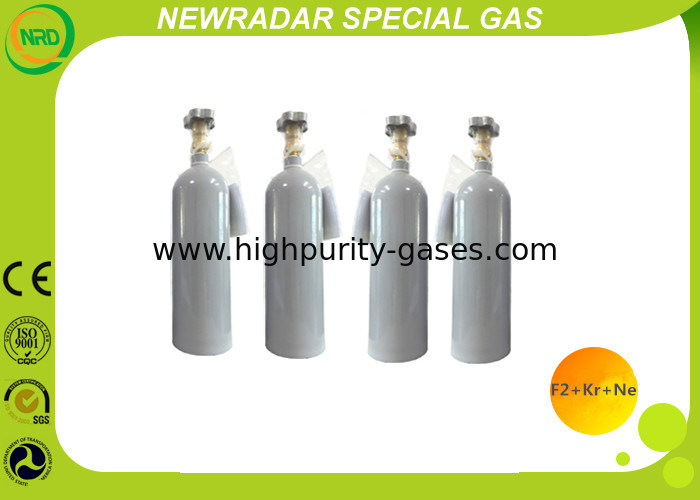

Krypton Fluoride Laser Mixtures F2 Ne Ar 1800 Psig / 2000 Psig

China Krypton Fluoride Laser Mixtures F2 Ne Ar 1800 Psig / 2000 Psig supplier
Krypton Fluoride Laser Mixtures F2 Ne Ar 1800 Psig / 2000 Psig supplier Krypton Fluoride Laser Mixtures F2 Ne Ar 1800 Psig / 2000 Psig supplier

Large Image :  Krypton Fluoride Laser Mixtures F2 Ne Ar 1800 Psig / 2000 Psig

Product Details:

Place of Origin: China
Brand Name: Newradar
Certification: ISO/DOT/GB
Model Number: N/A

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Packed in10L-50L cylinder or packed according to the demands.
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Filling Gas: Fluoride, Krypton And Neon Gas Mixtures Product Name: Krypton Neon Mixtures
Valve Type: CGA679 Pressure: 1800, 2000Psig
Color: Colorless Valve Outlet: DISS 718

Krypton Fluoride Laser Mixtures F2 Ne Ar 1800 Psig / 2000 Psig





Description:



Krypton Fluoride Mixtures are used in 248 nm lithography applications, usually in conjunction with
an inert gas mixture.



The krypton fluoride laser. is important in nuclear fusion energy research in confinement experiments. The laser has high beam uniformity, short wavelength, and the spot size can be varied to track an imploding pellet.



In experimental particle physics, liquid krypton is used to construct quasi-homogeneous electromagnetic calorimeters. A notable example is the calorimeter of the NA48 experiment at CERN containing about 27 tonnes of liquid krypton. This usage is rare, since liquid argon is less expensive. The advantage of krypton is a smaller Molière radius of 4.7 cm, which provides excellent spatial resolution with little overlapping. The other parameters relevant for calorimetry are: radiation length of X0=4.7 cm, and density of 2.4 g/cm3.



Gas lasers using many gases have been built and used for many purposes.



Specifications:



1. Physical properties



Major Components
COMPONENTS CONCENTRATION RANGE
Fluorine 1.0% 0.9-1.0%
Krypton 1.25% 1.2-1.3%
Neon Balance



2. Typical technical data (COA)



Maxinum Impurities
COMPONENT CONCENTRATION(ppmv)
Carbon Dioxide (CO2) <5.0
Carbon Monoxide (CO) <1.0
Carbon Tetrafluoride (CF4) <2.0
Carbonyl Fluoride (COF2) <2.0
Helium (He) <8.0
Hydrogen Fluoride/Moisture (HF/H2O) <25.0
Nitrogen (N2) <25.0
Nitrogen Trifluoride (NF3) <1.0
Oxygen (O2) <25.0
Sulfur Hexafluoride (SF6) <1.0
Silicon Tetrafluoride (SiF4) <2.0
THC (as Methane) (CH4) <1.0
Xenon (Xe) <1.0



3. Package



Cylinder Specifications Contents Pressure
Cylinder Valve Outlet Options Cubic Feet Liters PSIG BAR
1 CGA679 DISS 728 265 7500 2000 139
2 CGA679 DISS 728 212 6000 2000 139
3 CGA679 DISS 728 71 2000 1800

125



Applications:



Krypton Fluoride Mixtures are used in 248 nm lithography applications, usually in conjunction with
an inert gas mixture.



Krypton Fluoride Laser Mixtures F2 Ne Ar 1800 Psig / 2000 Psig
